Deeper polyurethane core for high-insulation roof specifications
InquiryHigh-Insulation Roofing Product
65 mm Large-Format Insulated Aluminum Panel
Enhanced insulation for demanding roofing applications
A deeper insulated aluminum roofing panel for buyers prioritizing stronger thermal and acoustic separation across demanding industrial, commercial, and residential roof systems.
- Overall depth
- 65 mm
- Effective width
- 950 mm
- Overall width
- 1,000 mm
- Fire rating
- B1

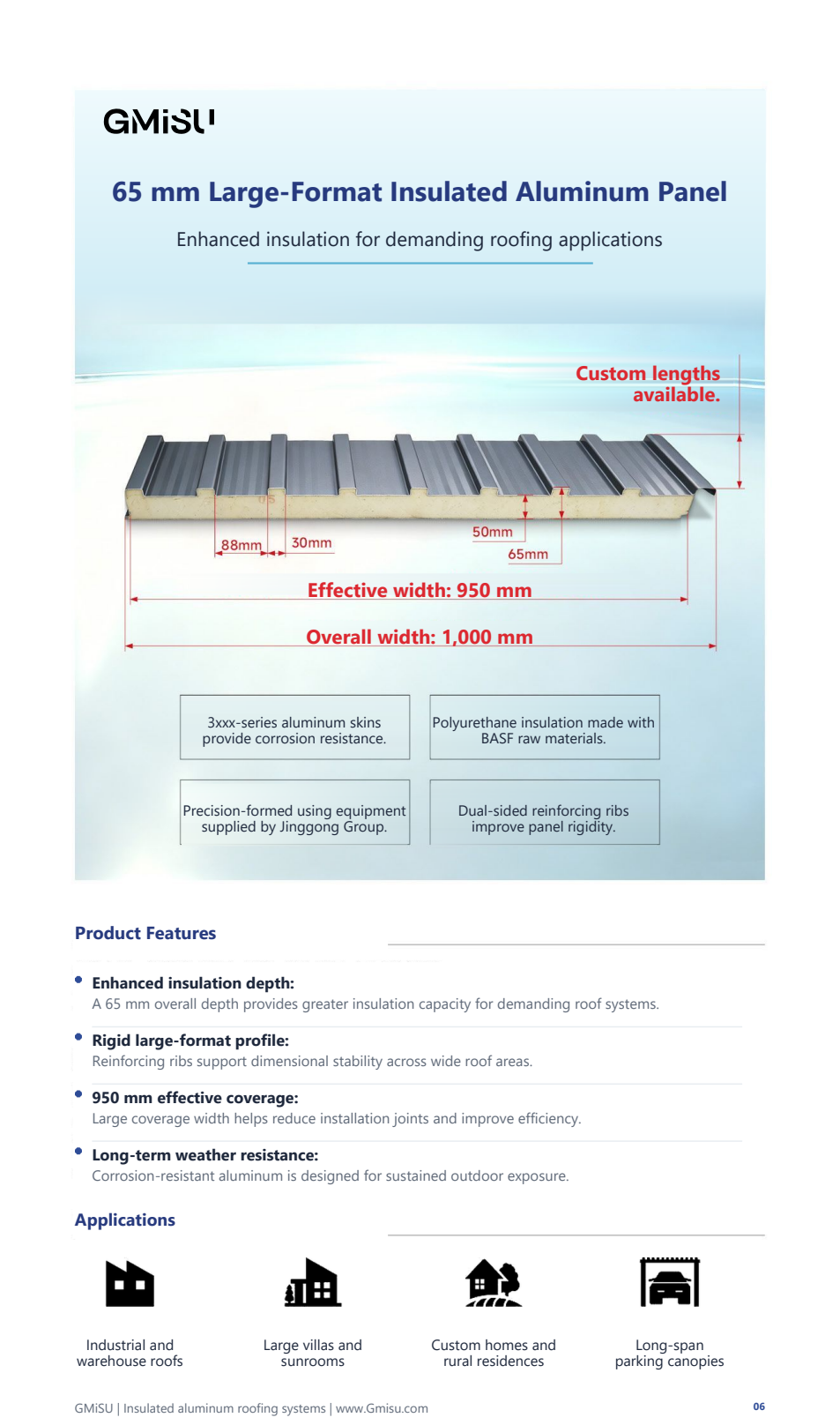

Catalogue specification
Panel profile, dimensions, and construction
The complete catalogue figure is shown without cropping so buyers can review the cross-section, coverage, construction, features, and typical applications together.
- Overall depth
- 65 mm
- Effective width
- 950 mm
- Overall width
- 1,000 mm
- Aluminum skins
- 3xxx-series aluminum skins
- Insulation core
- Polyurethane insulation made with BASF raw materials
- Fire rating
- B1
- Aluminum skin thickness
- 0.3-1.2 mm
- Panel length
- Cut to project requirements, subject to handling, loading, and transport feasibility
Material construction
Aluminum skins with a polyurethane insulation core
The 65 mm overall depth increases the available polyurethane insulation section while retaining efficient 950 mm effective coverage. Reinforcing ribs support dimensional stability across wide roof areas and help simplify installation planning.
The 3xxx-series aluminum skins provide a corrosion-resistant exterior, while polyurethane insulation made with BASF raw materials supports thermal and acoustic separation. Aluminum skin thickness can be customized from 0.3-1.2 mm.
Buyer benefits
Performance that matters in roof selection
Large-format coverage helps reduce installation joints
Rigid reinforced profile supports wide roof layouts
Weather-resistant aluminum surfaces resist corrosion
Applications
Where 65 mm large-format panel fits
Final selection should be coordinated with roof geometry, structure, climate, insulation priority, appearance, drainage, handling, and installation planning.
Industrial and warehouse roofs
Large villas and sunrooms
Custom homes and rural residences
Long-span parking canopies
Customization and ordering
Commercial information for procurement planning
No generic price is published because specifications, quantity, packing, destination, and trade terms change the final quotation.
- MOQ and samples
- 500 linear meters per product; small-quantity samples are available.
- Lead time
- Within 3 working days for samples; typically 7-15 working days for bulk orders.
- Customization
- 0.3-1.2 mm aluminum skins; ral color codes or customer-supplied physical color samples; cut to project requirements, subject to handling, loading, and transport feasibility.
- Packing
- Protective surface film with cushioning during container loading. Additional packing details can be agreed with the buyer.
- Inspection
- Live video-call inspection before shipment; additional arrangements negotiable
- Trade terms
- EXW is preferred; FOB is negotiable.
- Payment
- Confirmed in the sales contract
Warranty support
GMiSU provides warranty support for manufacturing-related quality issues under normal use and proper installation. Damage caused by improper handling, misuse, unauthorized modification, incorrect installation or other human factors is excluded. The applicable scope of warranty support will be confirmed according to each project and order agreement.
Quality documentation
Review quality assurance Reports and technical documents available on request
Complete test reports and additional technical documents are available upon request. The complete five-page B1 fire-performance report is also displayed inline on the homepage.
Related roofing products
Compare the remaining panel profiles
45 mm / 950 mm effective width
45 mm Large-Format Insulated Aluminum Panel
Balanced insulation and rigidity for versatile roofing projects
View product
35 mm / 333 mm effective width
Modular Insulated Aluminum Panel (365 mm Width)
Compact modular coverage for flexible installation
View product
33 mm / 1,000 mm effective width
33 mm Flat Insulated Aluminum Panel
A clean flat profile for contemporary architectural projects
View productQuestions about 65 mm Large-Format Panel
What is the minimum order quantity?
The MOQ is 500 linear meters per product. Small-quantity samples can be ordered before bulk production, while final bulk arrangements are confirmed for each project.
Which parts of the panel can be customized?
Colors, aluminum skin thickness from 0.3-1.2 mm, panel length, and project coordination details can be customized. Colors can follow RAL codes or a customer-supplied physical sample.
How quickly can GMiSU prepare samples and bulk orders?
Samples can normally be prepared within 3 working days. Typical bulk production lead time is 7-15 working days after order details are confirmed.
How can buyers inspect an order before shipment?
A live video-call inspection can be arranged before shipment. Additional inspection methods can be discussed and recorded in the order agreement.
- MOQ
- 500 linear meters per product
- Samples
- Small-quantity samples are available
- Sample lead time
- Within 3 working days
- Bulk lead time
- Typically 7-15 working days
- Response
- Within 12 hours
Start your project
Tell us what you need to build.
Share your product type, dimensions, color, quantity, drawings, destination market, and target schedule with Levi Leung.
